Flutter中嵌入Native组件

3 min

Flutter 官方提供的控件 AndroidViewUiKitView就是一种比较优雅的解决方案了。这里做了一个简单的嵌入TextView 的 demo(使用这种方式会增加性能上的开销,应该尽量避免使用)

使用方式

native 端

MethodChannel 的使用方法类似,在 native 侧,我们实现一个PlatformViewFactory(iOS 是FlutterPlatformViewFactory),在 create 方法中,使用平台方法创建 View 返回。

    override fun create(context: Context?, i: Int, any: Any?): PlatformView {
        return object : PlatformView {
            override fun getView(): View {
                val text = TextView(context)
                text.layoutParams = ViewGroup.LayoutParams(SizeUtils.dp2px(200f), SizeUtils.dp2px(200f))
                text.apply {
                    setText("Android View")
                    setTextColor(Color.BLUE)
                    setBackgroundColor(Color.RED)
                }
                return text
            }
            override fun dispose() {
            }
        }
    }

 func create(withFrame frame: CGRect, viewIdentifier viewId: Int64, arguments args: Any?) -> FlutterPlatformView {
    }

Flutter

使用 AndroidViewUiKitView 时需要传入一个 viewType,这个 String 将用于唯一标识该 Widget,用于和 Native 的 View 建立关联。

var VIEWCREATE = "TextView";
 Center(
        child: AndroidView(
          viewType: VIEWCREATE,
        ),
      )

View 最终的显示尺寸由谁决定?

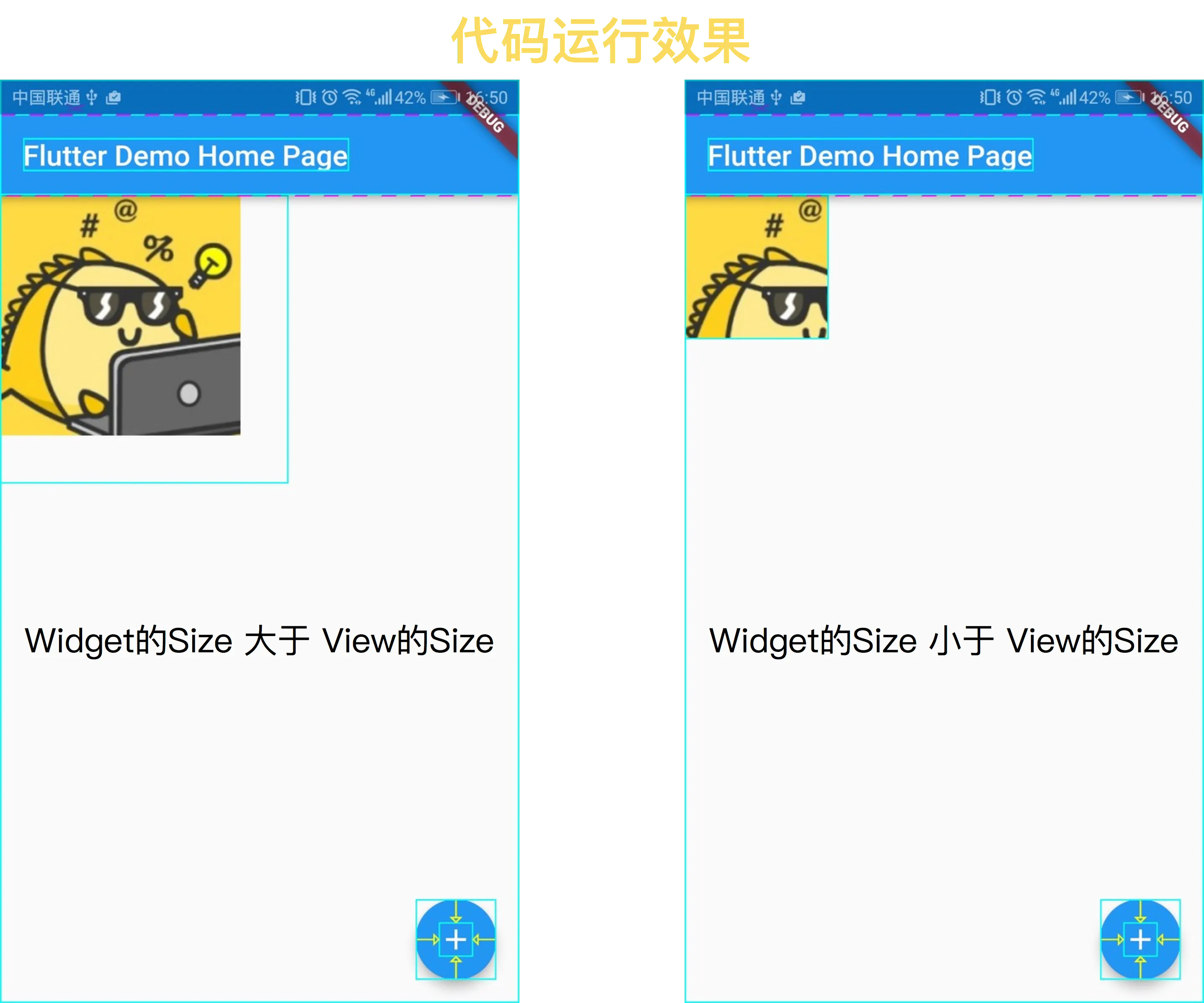

我们尝试修改 Native 端 View 的大小: 同时修改 Flutter 的大小 可以看到,Flutter 端的大小是小于 Native 端的 实际显示效果:

如果 Flutter 端大小大于 Native 端呢? 我们修改 Flutter 代码将大小设置为宽、高 100,Native 端 20: 打开布局边界,看以看到:

结论:

AndroidView 的大小是由其父节点所决定的,我们可以使用 Container、SizedBox 等控件控制 AndroidView 的大小。 如果在 Native 中渲染的 View 的实际大小大于 AndroidView 的大小时,Flutter 会使用裁切的方式进行展示 当这个 Native 端 View 的实际像素小于 AndroidView 的时候,会发现 AndroidView 并不会相应地变小(Container 的背景色并没有显露出来),没有内容的地方会被白色填充。

触摸事件

Android 中事件流,自顶向下传递,自底向上处理或回流。Flutter 同样是使用这一规则,但是其中 AndroidView 通过两个类来去处理手势: MotionEventsDispatcher:负责将事件封装成 Native 的事件并向 Native 传递; AndroidViewGestureRecognizer:负责识别出相应的手势,其中有两个属性:

  // Maps a pointer to a list of its cached pointer events.
  // Before the arena for a pointer is resolved all events are cached here, if we win the arena
  // the cached events are dispatched to the view, if we lose the arena we clear the cache for
  // the pointer.
  final Map<int, List<PointerEvent>> cachedEvents = <int, List<PointerEvent>> {};
  // Pointer for which we have already won the arena, events for pointers in this set are
  // immediately dispatched to the Android view.
  final Set<int> forwardedPointers = Set<int>();

使用(EagerGestureRecognizer 传递到 Android 端是 Touch 事件,不清楚 Click 事件没有,还是使用方法不对): ![WX20181207-130621.png][1] 详情可以看官网文档: https://docs.flutter.io/flutter/widgets/AndroidView/gestureRecognizers.html [4]: https://github.com/appdev/gallery/blob/main/img/2022-1-19%2014-50-24/c10e1f71-c89f-4a9c-897d-83b5c35e0d53.pngmirages-height=175&mirages-cdn-type=2
